Buttweld Fittings Tees

*T1 = Thickness of Branch will correspond to ITS NB & Sch
Size:½" NB to 24" NB
Thickness: Sch 5 - Sch 80
Material: Stainless Steel, Carbon Steel and Alloy Steel

Dimensions

Run NB Branch NB D Run D1 Branch T/T1* C ±2 M ±2
IN MM IN MM SCH. 10S SCH. 40S SCH. 80S
1/2 1/2 15 21.3 21.3 2.77 3.73 25 25
3/4 20 3/4 20 26.7 26.7 2.11 2.87 3.91 28 28
3/4 20 1/2 15 26.7 21.3
1 25 1 25 33.4 33.4 2.77 3.38 4.55 38 38
1 25 3/4 20 33.4 26.7 38 38
1 25 1/2 15 33.4 21.3 38 38
1 1/4 32 1 1/4 32 42.2 42.2 2.77 3.56 4.85 48 48
1 1/4 32 1 25 42.2 33.4 48 48
1 1/4 32 3/4 20 42.2 26.7 48 48
1 1/4 32 1/2 15 42.2 21.3 , 48 48
1 1/2 40 1 1/2 40 48.3 48.3 2.77 3.68 5.08 57 57
1 1/2 40 1 25 48.3 33.4 57 57
1 1/2 40 3/4 20 48.3 26.7 57 57
1 1/2 40 1/2 15 48.3 21.3 57 57
2 50 2 50 60.3 60.3 2.77 3.91 5.55 64 64
2 50 1 1/2 40 60.3 48.3 64 60
2 50 1 1/4 32 60.3 42.2 64 57
2 50 1 25 60.3 33.4 64 51
2 50 3/4 20 60.3 26.7 64 44
2 1/2 65 21/2 65 73.0 73.0 3.05 5.16 7.01 76 76
2 1/2 65 2 50 73.0 60.3 76 70
2 1/2 65 1 1/2 40 73.0 48.3 76 67
2 1/2 65 1 25 73.0 33.4 76 57
3 80 3 80 88.9 88.9 3.05 5.5 7.6 86 86
3 80 21/2 65 88.9 73.0 86 83
3 80 2 50 88.9 ' 60.3 86 76
3 80 1 1/2 40 88.9 48.3 86 73
4 100 4 100 114.3 114.3 3.05 6.02 8.55 105 105
4 100 3 80 114.3 89.9 105 98
4 100 21/2 65 114.3 73.0 105 95
4 100 2 50 114.3 60.3 105 89
4 100 1 1/2 40 114.3 48.3 105 86
5 125 5 125 141.3 141.3 3.40 6.55 9.53 124 124
5 125 4 100 141.3 114.3 124 117
5 125 3 80 141.3 88.09 124 111
5 125 2 50 141.3 60.03 124 105
6 150 6 150 168.3 168.03 7.11 10.97 143 143
6 150 5 125 168.3 141.03 3.4 143 137
6 150 4 100 168.3 114.03 143 130
6 150 3 80 168.3 88.09 143 124
6 150 2 1/2 65 168 3 73 143 121
8 200 8 200 219.1 219.01 8.18 12.7 178 178
8 200 6 150 219.1 168.03 3.76 178 168
8 200 5 125 219.1 141.03 178 132
8 200 4 100 219.1 114.03 178 156
10 250 10 250 273 273 9.27 15.09 216 216
10 250 8 200 273 219.01 4.19 216 203
10 250 6 150 273 168.03 216 194
10 250 5 125 273 141.03 216 191
10 250 4 100 273 114.03 216 184
12 300 12 300 323.9 323.09 10.31 17.48 254 254
12 300 10 250 323.9 273 4.57 254 241
12 300 8 200 323.9 219.01 254 229
12 300 6 150 323.9 168.03 254 219
12 300 5 125 323.9 141.03 254 216
14 350 14 350 355.6 355.06 11.13 19.05 279 279
14 350 12 300 355 6 323.09 4.78 279 270
14 350 10 250 355 6 273 279 257
14 350 8 200 355 6 219.01 279 248
14 350 6 150 355.6 168.03 279 238
16 400 16 400 406.4 406.04 12.7 21.4 305 305
16 400 14 350 406.4 355.06 4.78 305 305
16 400 12 300 406.4 323.09 305 295
16 400 10 250 406.4 273 305 283
16 400 8 200 406.4 219.01 305 273
16 400 6 150 406.4 168.03 305 264
18 450 18 450 457.2 457.02 14.27 23.8 343 343
18 450 16 400 457.2 406.04 4.78 343 330
18 450 14 350 457.2 355.06 343 330
18 450 12 300 457.2 323.09 343 321
18 450 10 250 457.2 273 343 308
18 450 8 200 457.2 219.01 343 298
20 500 20 500 508 508 15.09 26.2 381 381
20 500 18 450 508 457.02 5.54 381 343
20 500 16 400 508 406.04 381 330
20 500 14 350 508 355.06 381 330
20 500 12 300 508 323.09 381 321
20 500 10 250 508 273   381 308
20 500 8 200 508 219.01 381 298
24 600 24 600 610 610 17.48 31 432 432
24 600 20 500 610 508 6.35 432 381
24 600 18 450 610 457.02 432 343
24 600 16 400 610 406.04 432 330
24 600 14 350 610 355.06 432 330
24 600 12 300 610 323.09 432 321
24 600 10 250 610 273 432 308

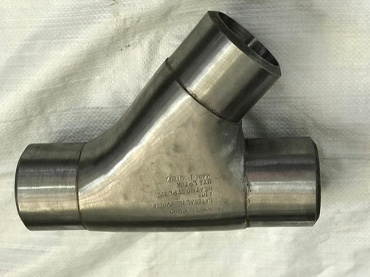

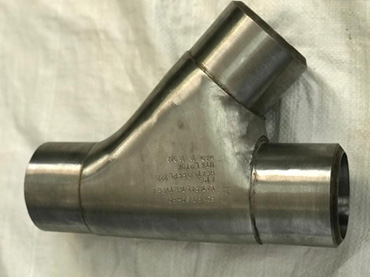

45° Lateral Tee

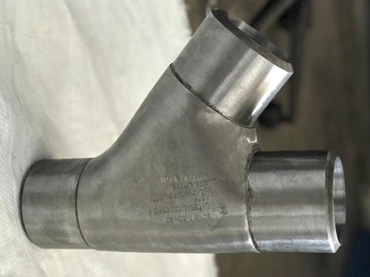

45° Lateral Tee

45° Lateral Tee

45° Lateral Tee

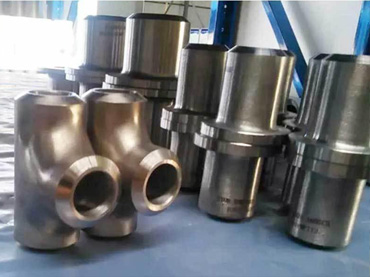

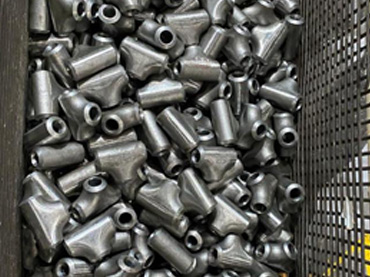

Equal Tee

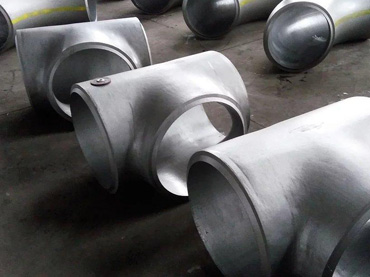

Equal Tee

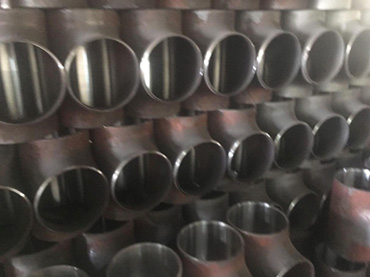

Equal Tee

Equal Tee

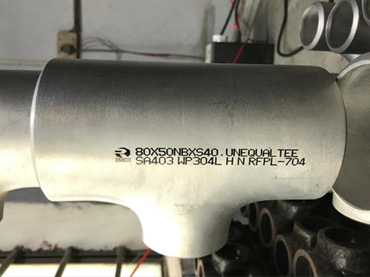

Unequal Tee
