Buttweld Fittings Reducers

Size:½" NB to 24" NB
Thickness: Sch 5 - Sch 80
Material: Stainless Steel, Carbon Steel and Alloy Steel

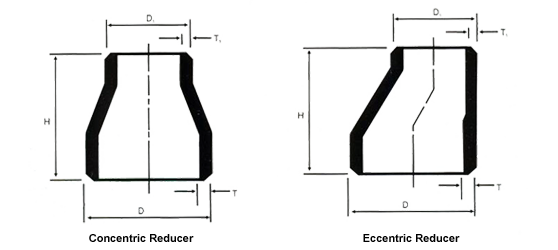

Dimensions

Nominal Pipe Size D X D1 Thickness
IN MM T X T1 Sch. 10 T X T1 Sch.40 T X T1 Sch. 80 H
3/4 x 1/2 20 x 15 267 x 21.3 2.11 x 2.11 2.87 x 2.77 3.91 x 3.73 51
1 x 3/4 25 x 20 33.4 x 26.7 2.77 x 2.11 3.38 x 2.87 4.55 x 3.91 51
1 x 1/2 25 x 15 33.4 x 21.3 2.77 x 2.11 3.38 x 2.77 4.55 x 3.73 51
11/4 x 01 32 x 25 42.2 x 33.4 2.77 x 2.77 3.56 x 3.38 4.85 x 4.55 51
11/4 x 3/4 32 x 20 42.2 x 26.7 2.77 x 2.11 3.56 x 2.87 4.85 x 3.91 51
11/4 x 1/2 32 x 15 42.2 x 21.3 2.77 x 2.11 3.56 x 2.77 4.85 x 3.73 51
1 1/2 x 11/4 40 x 32 48.3 x 42.2 2.77 x 2.77 3.68 x 3.56 5.08 x 4.85 64
1 1/2 x 01 40 x 25 48.3 x 33.4 2.77 x 2.77 3.68 x 3.38 5.08 x 4,55 64
1 1/2 x 3/4 40 x 20 48.3 x 66.7 2.77 x 2.11 3.68 x 2.87 5.08 x 3.91 64
1 1/2 x 1/2 40 x 15 48.3 x 21.3 2.77 x 2.11 3.68 x 2.77 5.08 x 3.73 64
2.0 x 1 1/2 50 x 40 60.3 x 48.3 2.77 x 2.77 3.90 x 3.68 5.55 x 5.08 76
2.0 x 1 1/4 50 x 35 60.3 x 42.2 2.77 x 2.77 3.90 x 3.56 5.55 x 4.85 76
2.0 x 0.1 50 x 25 60.3 x 33.4 2.77 x 2.77 3.90 x 3.38 5.55 x 4.55 76
2.0 x 3/4 50 x 20 60.3 x 26.7 2.77 x 2.11 3.90 x 2.87 5.55 x 3.91 76
2 1/2 x 2.0 65 x 50 73.0 x 60.3 3.05 x 2.77 5.16 x 3.90 7.01 x 5.55 89
2 1/2 x 11/2 65 x 40 73.0 x 48.3 3.05 x 2.77 5.16 x 3.68 7.01 x 5.08 89
2 1/2 x 1.0 65 x 25 73.0 x 33.4 3.05 x 2.77 5.16 x 3.38 7.01 x 4.55 89
3.0 x 2 1/2 80 x 65 88.9 x 73.0 3.05 x 3.05 ! 5.5 x 5.16 7.62 x 7.01 89
3.0 x 0.2 80 x 50 88.9 x 60.3 3.05 x 2.77 5.5 x 3.09 7.62 x 5.55 89
3.0 x 1 1/2 80 x 40 88.9 x 48.3 3.05 x 2.77 5.5 x 3.68 7.62 x 5.08 89
3.0 x 11/4 80 x 32 88.9 x 42.2 3.05 x 2.77 5.5 x 3.56 7.62 x 4.85 89
4.0 x 3.0 100 x 80 114.3 x 88.9 3.05 x 3.05 6.0 x 5.05 8.55 x 7.62 102
4.0 x 2 1/2 100 x 65 114.3 x 73.0 3.05 x 3.05 6.0 x 5.16 8.55 x 7.01 102
4.0 x 2.0 100 x 50 114.3 x 60.3 3.05 x 2.77 6.0 x 3.09 8.55 x 5.55 102
4.0 x 1 1/2 100 x 40 114.3 x 48.3 3.05 x 2.77 6.0 x 3.68 8.55 x 5.08 102
5.0 x 4.0 125 x 100 141.3 x 114.3 3.40 x 3.05 6.55 x 6.0 127
5 x 3 125 x 80 141.3 x 88.9 3.40 x 3.05 6.55 x 05.05 09.53 x 07.06 127
5 x 21/2 125 x 65 141.3 x 73.0 3.40 x 3.05 6.55 x 05.16 09.53 x 07.01 127
5 x 2 125 x 50 141.3 x 60.3 3.40 x 2.77 6.55 x 03.09 09.53 x 05.55 127
6 x 5 150 x 125 168.3 x 141.3 3.40 x 3.40 7.11 x 06.55 10.97 x 09.53 140
6 x 4 150 x 100 168.3 x 114.3 3.40 x 3.05 7.11 x 06.00 10.97 x 08.55 140
6 x 3 150 x 80 168.3 x 88.9 3.40 x 3.05 7.11 x 05.05 10.97 x 07.06 140
6 x 2 1/2 150 x 65 168.3 x 73.0 3.40 x 2.77 7.11 x 05.16 10.97 x 07.01 140
8 x 6 200 x 150 219.1 x 168.3 3.76 x 3.40 8.02 x 07.11 12.07 x 10.97 152
8 x 5 200 x 125 219.1 x 141.3 3.76 x 3.40 8.02 x 06.55 12.07 x 09.53 152
8 x 4 200 x 100 219.1 x 114.3 3.76 x 3.05 8.02 x 06.00 12.07 x 08.55 152
10 x 8 250 x 200 273.0 x 219.1 4.19 x 3.76 9.27 x 06.00 15.09 x 12.70 178
10 x 6 250 x 150 273.0 x 168.3 4.19 x 3.40 9.27 x 07.11 15.09 x 10.97 178
10 x 5 250 x 125 273.0 x 141,3 4.19 x 3.40 9.27 x 06.55 15.09 x 09.53 178
10 x 4 250 x 100 273.0 x 114.3 4.19 x 3.05 9.27 x 06.02 15.09 x 08.56 178
12 x 10 300 x 250 323.9 x 273.0 4.57 x 4.19 10.31 x 09.27 17.48 x 15.09 203
12 x 8 300 x 200 323.9 x 219.1 4.57 x 3.76 10.31 x 08.20 17.48 x 12.07 203
12 x 6 300 x 150 323.9 x 168.3 4.57 x 3.40 10.31 x 07.11 17.48 x 10.97 203
12 x 5 300 x 125 323.9 x 141.3 4.57 x 3.40 10.31 x 06.55 17.48 x 09.53 203
14 x 12 350 x 300 355.6 x 323.9 4.78 x 4.57 11.13 x 10.31 19.05 x 17.48 330
14 x 10 350 x 250 355.6 x 273.0 4.78 x 4.19 11.13 x 09.27 19.05 x 15.09 330
14 x 08 350 x 200 355.6 x 219.1 4.78 x 3.76 11.13 x 08.20 19.05 x 12.07 330
14 x 06 350 x 150 355.6 x 168.3 4.78 x 3.40 | 11.13 x 07.11 19.05 x 10.97 330
16 x 14 400 x 350 406.4 x 355.6 4.78 x 4.78 12.70 x 11.13 21.44 x 19.05 356
16 x 12 400 x 300 406.4 x 323.9 4.78 x 4.57 12.70 x 10.31 21.44 x 17.48 356
16 x 10 400 x 250 406.4 x 273.0 4.78 x 4.19 12.70 x 09.27 21.44 x 15.09 356
16 x 08 400 x 200 406.4 x 219.1 4.78 x 3.76 12.70 x 08.20 21.44 x 12.07 356
16 x 06 400 x 150 406.4 x 168.3 4.78 x 3.40 12.70 x 07.11 21.44 x 12.07 356
18 x 16 450 x 400 457.2 x 406.4 4.78 x 4.78 14.27 x 12.70 23.83 x 21.44 381
18 x 14 450 x 350 457.2 x 355.6 4.78 x 4.78 14.27 x 11.13 23.83 x 19.05 381
18 x 12 450 x 300 i 457.2 x 323.9 4.78 x 4.78 14.27 x 10.31 23.83 x 17.48 381
18 x 10 450 x 250 457.2 x 273.0 4.78 x 4.19 14.27 x 09.27 23.83 x 15.09 381
18 x 08 450 x 150 457.2 x 219.1 4.78 x 3.76 14.27 x 08.20 23.83 x 12.07 381
20 x 18 500 x 450 508.0 x 457.2 5.54 x 4.78 15.09 X 14.27 26.19 x 23.83 508
20 x 16 500 x 400 508.0 x 406.4 5.54 x 4.78 15.09 x 1270 26.19 x 21.44 508
20 x 14 500 x 350 508.0 x 355.6 5.54 x 4.78 15.09 x 11.13 | 26.19 x 19.05 508
20 x 12 500 x 300 508.0 x 323.9 5.54 x 4.78 15.09 x 10.31 26.19 x 17.48 508
20 x 10 500 x 250 508.0 x 273.0 5.54 x 4.19 15.09 x 09.27 26.19 x 15.09 508
20 x 08 500 x 200 508.0 x 219.1 5.54 x 3.76 15.09 x 08.20 26.19 x 12.07 508
24 x 20 600 x 500 610.0 x 508.0 6.35 x 5.54 17.48 x 15.09 30.96 x 26.19 508
24 x 18 600 x 450 610.0 x 457.2 6.35 x 4.78 17.18 x 14.27 30.96 x 23.83 508
24 x 16 600 x 400 610.0 x 406.4 6.35 x 4.78 17.48 x 12.70 30.96 x 21.44 508
24 x 14 600 x 350 610.0 x 355.6 6.35 x 4.78 17.48 x 11.13 30.96 x 19.05 508
24 x 12 600 x 300 610.0 x 323.9 6.35 x 4.78 17.48 x 10.31 30.96 x 17.48 508
24 x 10 600 x 250 610.0 x 273.0 6.35 x 4.19 17.48 x 09.27 13.96 x 15.09 508

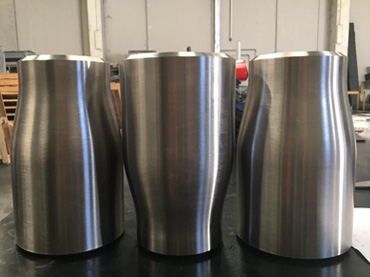

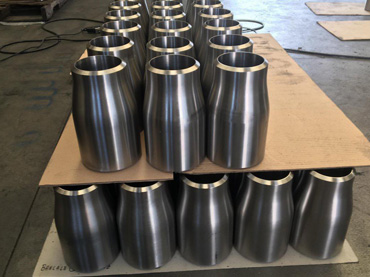

Concentric Reducer

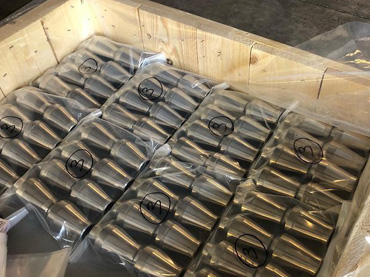

Concentric Reducer

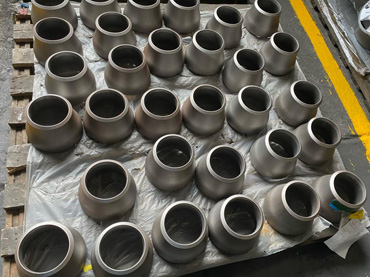

Concentric Reducer

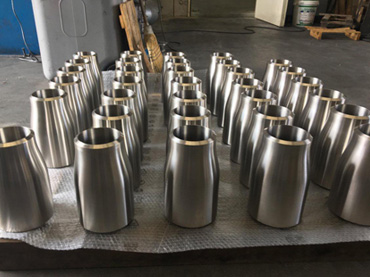

Concentric Reducer

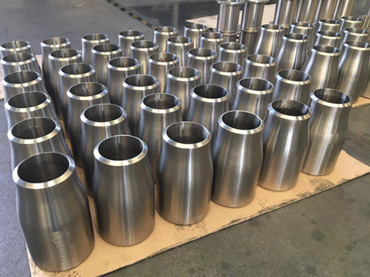

Concentric Reducer

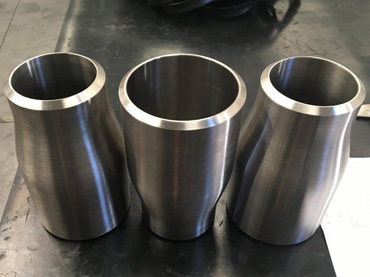

Concentric Reducer

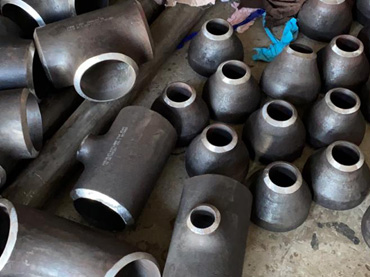

Concentric Reducer

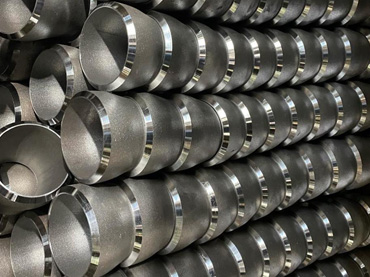

Concentric Reducer

Concentric Reducer

Eccentric Reducer
