Buttweld Fittings Elbow

We offer elbow in 45°, 90° & 180° bend Long Radius & Short radius, R - 1D, 1.5D, 3D, 5D, 10D, etc.

Size: ½" NB to 24" NB

Thickness: Sch 5 - Sch 80

Material: Stainless Steel, Carbon Steel and Alloy Steel

Dimensions

Nom. Pipe Size		O.D.	45° Bend	90° Bend Long RAD	90° Bend Short RAD	180° Bend Long RAD		180° Bend Short RAD		Thickness t
IN	MM	D	B	A_L	A_S	O_L	K_L	O_S	K_S	SCH 10	SCH 40	SCH 80	CAPS E
1/2	15	21.30	16	38		76	49			2.11	2.77	3.73	25.0
3/4	20	26.67	11	29		57	43			2.11	2.87	3.91	25.0
1	25	33.40	22	38	25	76	56	51	41	2.77	3.38	4.55	38.0
1 1/4	32	42.20	25	48	32	95	70	64	52	2.77	3.56	4.85	38.0
1 1/2	40	48.30	29	57	38	114	83	76	62	2.77	3.68	5.08	38.0
2	50	60.30	35	76	51	152	106	102	81	2.77	3.9	5.55	38.0
2 1/2	65	73.00	44	95	64	191	132	127	100	3.05	5.16	7.01	38.0
3	80	88.90	51	114	76	229	159	152	121	3.05	5.49	7.62	51.0
4	100	114.30	64	152	102	305	210	203	159	3.05	6.02	8.55	64.0
5	125	141.30	79	190	127	381	262	254	197	340	6.55	9.53	76.0
6	150	168.30	95	229	152	457	313	305	237	3.40	7.11	10.97	89.0
8	200	219.10	127	305	203	610	414	406	313	3.76	8.18	12.7	102.0
10	250	273.00	159	381	254	762	518	508	391	4.19	9.27	15.09	127.0
12	300	323.90	190	457	305	914	619	610	467	4.57	10.31	17.48	152.0
14	350	355.60	222	533	356	1067	711	711	533	4.78	11.13	19.05	165.0
16	400	406.40	254	610	406	1219	813	813	610	4.78	12.70	21.44	178.0
18	450	457.20	286	686	457	1372	914	914	686	4.78	14.27	23.83	203.0
20	500	508.00	318	762	508	1524	1016	1016	762	5.54	15.09	26.19	229.0
24	600	609.60	381	914	610	1829	1219	1219	914	6.35	17.48	30.96	267.0

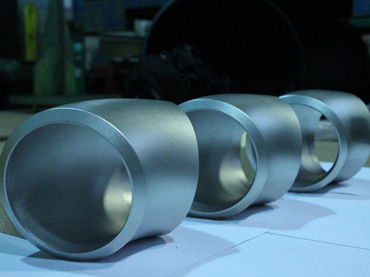

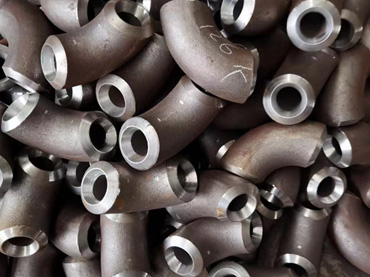

45° Long Radius elbow

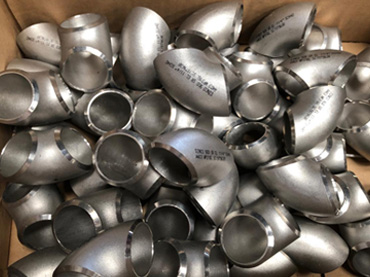

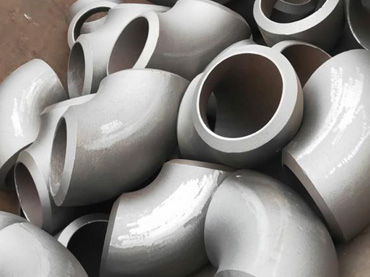

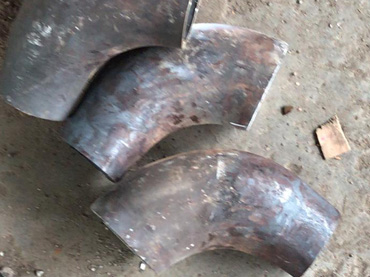

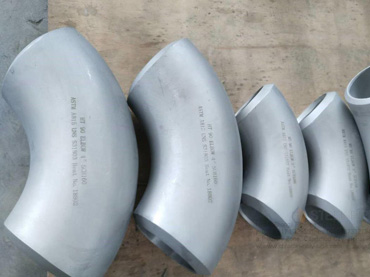

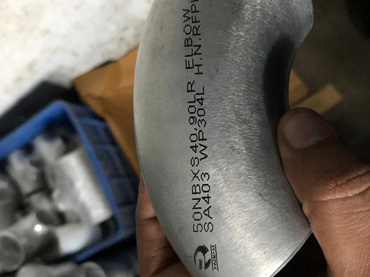

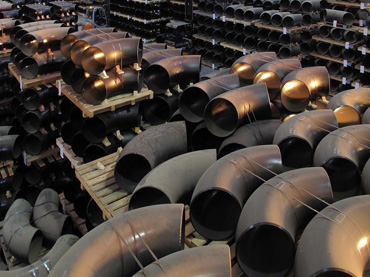

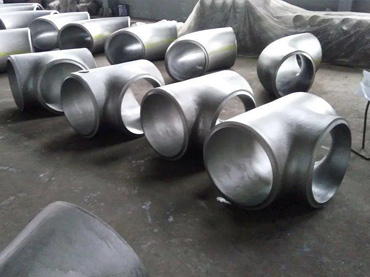

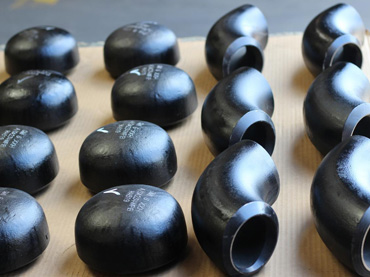

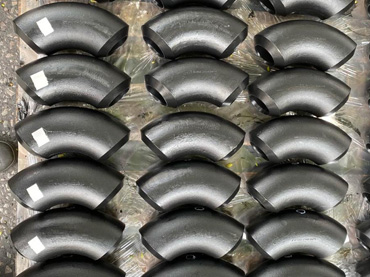

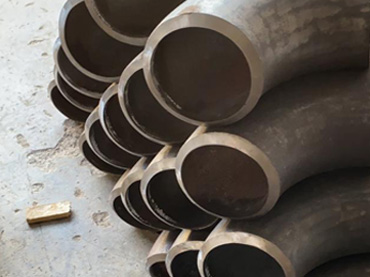

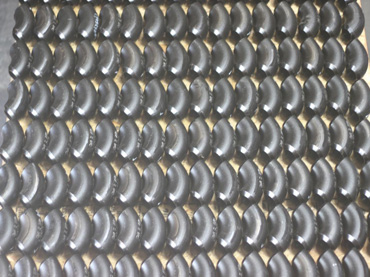

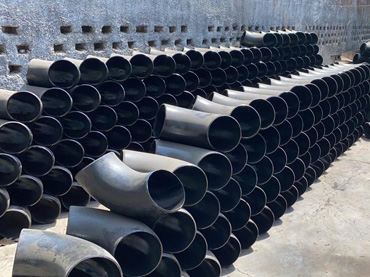

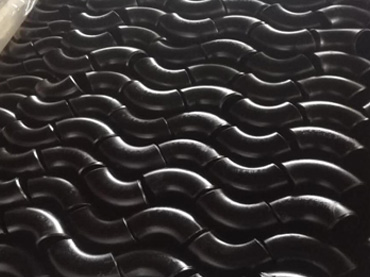

90° Short Radius elbow

90° Short Radius elbow

90° Short Radius elbow

90° Short Radius elbow

90° Short Radius elbow

90° Short Radius elbow

90° Short Radius elbow

90° Short Radius elbow

90° Short Radius elbow

90° Short Radius elbow

90° Short Radius elbow

90° Short Radius elbow

90° Short Radius elbow

90° Short Radius elbow

90° Short Radius elbow

90° Short Radius elbow

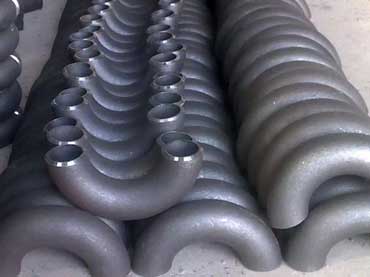

180° Long Radius elbow

SA 420 WPL6, ELBOW

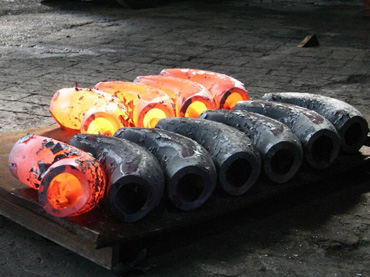

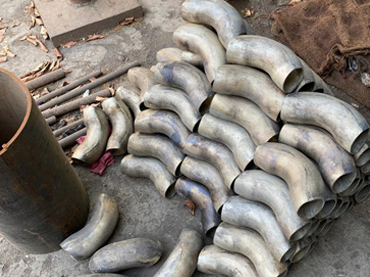

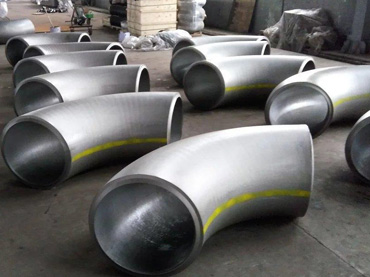

HOT FORMED ELBOW SS 316
